Aerobatic trainer (based on "Air cobra" P-39)

2005_1030AP 2005_1030A 2005_1030AA 2005_1030AB 2005_1030AC
2005_1030AD 2005_1030AE 2005_1030AF 2005_1030AH 2005_1030AJ
2005_1030AK 2005_1030AL 2005_1030AM 2005_1030AN 2005_1030AO
2005_1029AA

    This is a Radio Controlled Aerobatic Trainer (based on scale "Air cobra" P-39 model). The wingspan is increased from the scale model. Also this model has symmetrical airfoil wings, which enables the model to fly with almost the same flying characteristics in upright and up side down flying.

Features:
    Composite, fiberglass fuselage construction (made by vacuum forming technique). The wing is constructed out of balsa and plywood (with symmetrical airfoil). Ruder and elevator are also constructed out of balsa. Wings, ruder, elevator are covered with Tower Kotte.

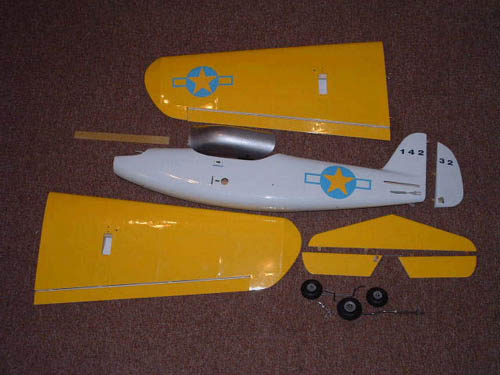

    On the pictures you can see that this is ARF-(Almost Ready to Fly) model. Before the first flight you need to glue in the elevator and ruder with Epoxy (we recommend 12-30 minute Epoxy), install fuel tank, servos, push rods, receiver and battery.


    If you would like we also, can install everything for you. In other words we can make this model RTF- (Ready To Fly) for you. For that you need to contact us before or after winning the model. The person who would buy the model as RTF-(Ready To Fly) would need only to charge the batteries, fuel the airplane and he is ready for take off (on his local RC-Club field).

Specs:
   Wingspan: 129.28cm (50.5 inches)
   Length: 84.5cm (33 inches)
   Weight: 1.4kg (3.087 lb)(Ready To Fly dry-with out fuel)

Requires:
   Engine: 4.0-5.0 cc (0.25-0.32 cu in) 2-stroke
   Radio: Standard 4ch. system, with 5 servos

    The model can be shipped by UPS, USPS or Self pick-up.
Beside this model we have a few more airplane models. Also, we take costume orders for any other kind of airplane model.

    For any questions about this model and our other products you can contact us by visiting our web site www.amocs.com




Video - clip 320x240: Tack off from grass runway ;  Tack off from concrete runway   (~ 1Mb)

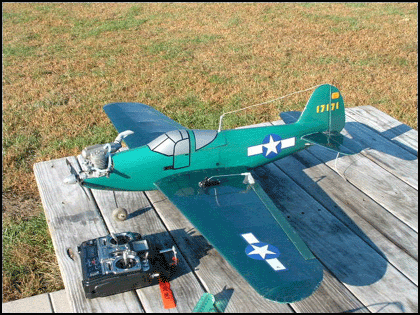

Photo gallery from first test flights of a similar model powered by O.S. Max 25FX engine


For more information you can contact us by E-Mail address: viatg@yahoo.com
Or visit our web AMOCS.com
